Dioxin monitoring system

Dioxin monitoring system

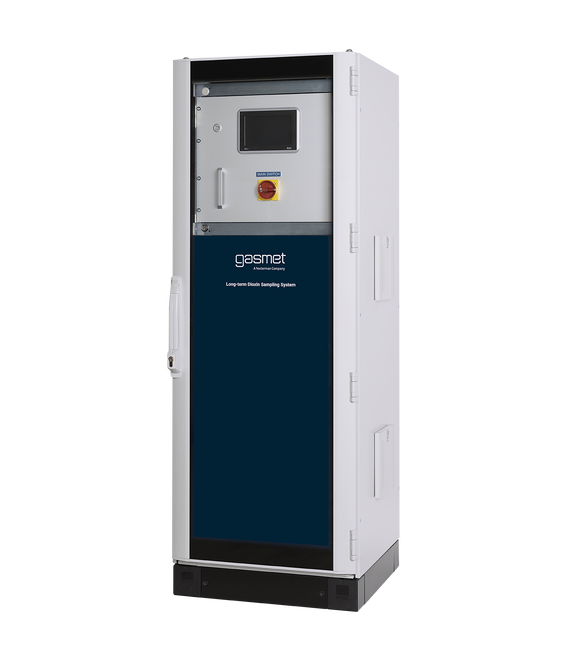

GT90 Dioxin+

GT90 Dioxin+

  • description
  • technical data
  • download
description

The GT90 Dioxin+ has been specially developed for long-term sampling of dioxin and furan emissions. The automatic system represents the state of the art for dioxin sampling (basis: dilution method) and meets all the requirements of the European standard EN1948-1 for dioxin sampling. The GT90 Dioxin+ is MCERTS certified, and the conditions underlying the MCERTS certificate are QAL1:EN15267-1 and EN15267-2:2009.

The stationary system is the perfect solution for continuous isokinetic sampling of organic compounds in industrial and household waste incineration plants. In addition to dioxins, the system is capable of measuring furans and other persistent organic pollutants (POPs), such as polychlorinated biphenyls (PCBs) and polycyclic aromatic hydrocarbons (PAHs). As an option, the GT90 Dioxin+ can also be equipped with the ParTrace option, which enables the collection of heavy metals and particulate matter

technical data
  • Automatic system designed for continuous operation with isokinetic sampling using optimal materials, designed for industrial use even in harsh conditions
  • EN 1948-1 konform
  • Heated sampling probe and heated line
  • Sample gas velocity from 1.1 to 30 m/s
  • Dust content up to max. 150 mg/m3
  • Dilution method using dry cartridges
  • Measurement range: 0.0001 – 10 ng I-TEQ/m3 (sampling 6 weeks)
  • Remote access and control
